New Owner's Guide

Thanks for choosing Mokwheel bikes! To get started, watch our Safety video below to learn some tips for a safe ride, then click on a heading below to learn more about how to use and enjoy your bike! Please select the model below:
Basalt ST Basalt Obsidian Obsidian ST Tor Plus Mesa Plus St Scoria Slate Granite Asphalt ST Asphalt
  • Mokwheel Obsidian ST - electric mountain bike

Key Function

The positions and combinations of keys are as follows:

Key operation includes short press, press and hold, and press and holds a combination of keys. The short press is used for quick/frequent setting adjustment, details are as described below.

Turn On/Off

Press and hold to turn on/off the Ebike. Hold down the key to switch between Mode/On & Off status. Long press is also used for setting parameters.

Function

With the Ebike switched on, short press to switch the display to the multi-function data display page. Press " " to shift gear level when riding the Ebike.

Horn Key

Press the horn key with the Ebike switched on (a horn sound will occur).

Headlight

Press the headlight key to turn on the headlight with Ebike switched on. Press the key again to turn off the headlight.

Settings

Press and hold the + key to enter the secondary menu display for 5 seconds and then return to the primary menu mode Secondary menu view interface display content.
a.Display speed:(Average speed AVG, Maximum speed MAX)
b.Display total mileage (ODO) and current single mileage (TRIP)

LCD Odometer Display

Display Function Speed, power-assisted gear level, battery power, total mileage, single ride mileage, single riding time, error code.


Description of Display Contents All displayed contents (appear within 1 second of turning on Ebikes) Press and hold MODE to turn on the bike.

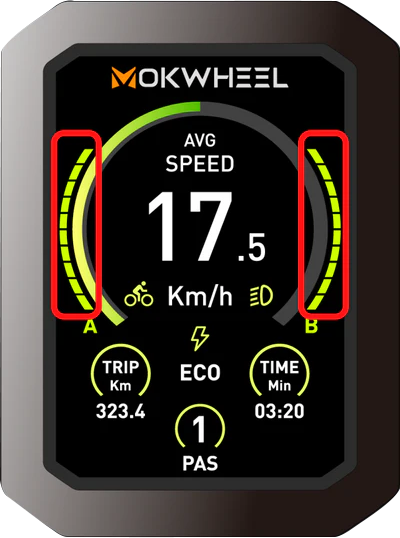

Battery power display

A/B Single and double battery level display

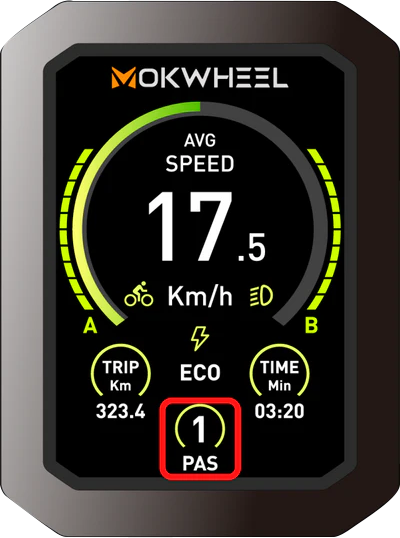

Power-assisted system

0-5 gears levels. Generally speaking there are third gear, fifth gear to choose from

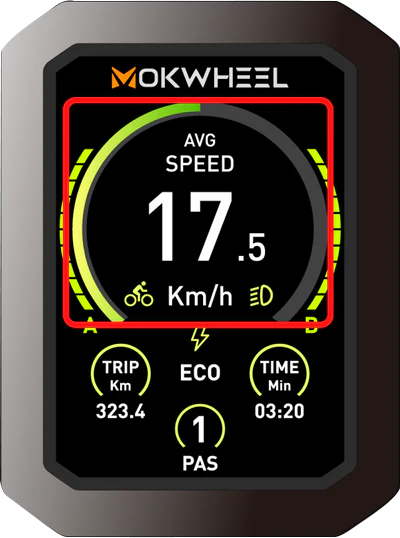

Speed display

Current speed. And when the speed bar is more than halfway, the bike will change from Eco-mode to Power mode.

Ebike gear mode

Push assist mode(Hold the Down key to enter 6km/h cruise mode), Cruise mode(Press and hold down the key for 2 seconds to enter cruise mode in pure electric riding).

Ride information display

Single mileage (TRIP) display and ride time (TIME) display.

Multi-functional display

Front headlight and rear taillight display；Type-C output display

Mokwheel Basalt ST - all terrain fat tire electric bike
Mokwheel Basalt ST - all terrain fat tire electric bike
Mokwheel Basalt ST - all terrain fat tire electric bike
Mokwheel Basalt ST - all terrain fat tire electric bike
Mokwheel Basalt ST - all terrain fat tire electric bike
Mokwheel Basalt ST - all terrain fat tire electric bike

Battery power display

A/B Single and double battery level display

Power-assisted system

0-5 gears levels. Generally speaking there are third gear, fifth gear to choose from

Speed display

Current speed. And when the speed bar is more than halfway, the bike will change from Eco-mode to Power mode.

Ebike gear mode

Push assist mode(Hold the Down key to enter 6km/h cruise mode), Cruise mode(Press and hold down the key for 2 seconds to enter cruise mode in pure electric riding).

Ride information display

Single mileage (TRIP) display and ride time (TIME) display.

Multi-functional display

Front headlight and rear taillight display；Type-C output display

Mokwheel Basalt ST - fast electric mountain bike

Parameter Settings

Press and hold both + to enter the parameter setting page.
Under the Setting sub-menu, short press or to adjust the value/unit. After modification, the parameter will flash.

After confirming the set parameter:

1. A. Press and hold until the parameter stops flashing to save the set parameter.
B. Short press to switch to the next parameter as well as save the just set parameter.
2. Press both + to exit the Setting page and save the set parameter. If you fail to do so, the modified settings will be automatically saved and the system will exit the Setting page after 10 seconds.
Please note: some displayed contents of the product you receive from MokWheel may differ from the manual due to product upgrades, however, this will not affect your use of the product.

Safety Checklist

NOTICE: Before every ride, it is important to carry out the following safety checks.
