Overview
Description

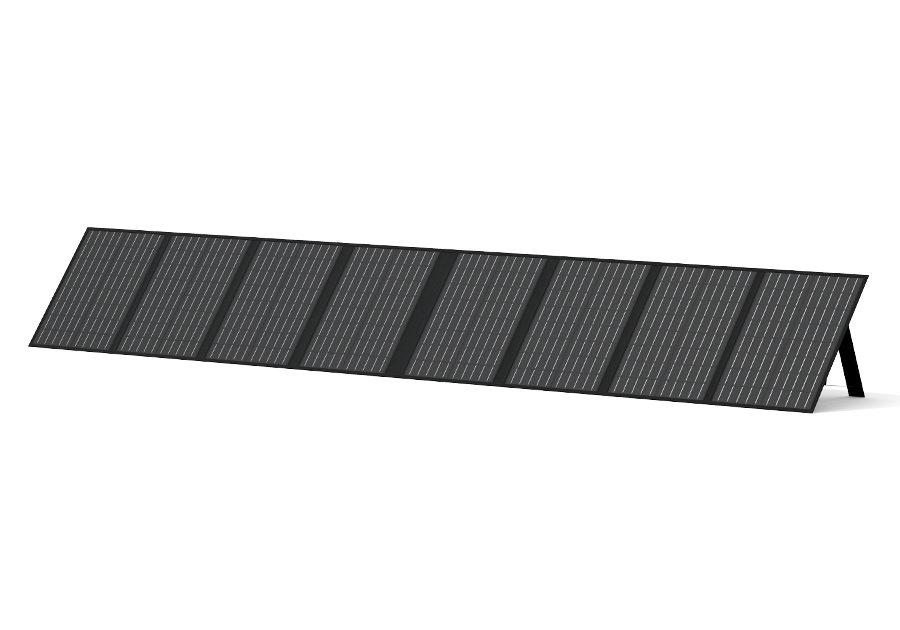

This Portable Solar Panel For Travellers is perfect! Highly efficient solar cells convert up to 22% of solar power into free energy. Fast Charging Technology: Built-in intelligent chip, provides a steady current when charging.

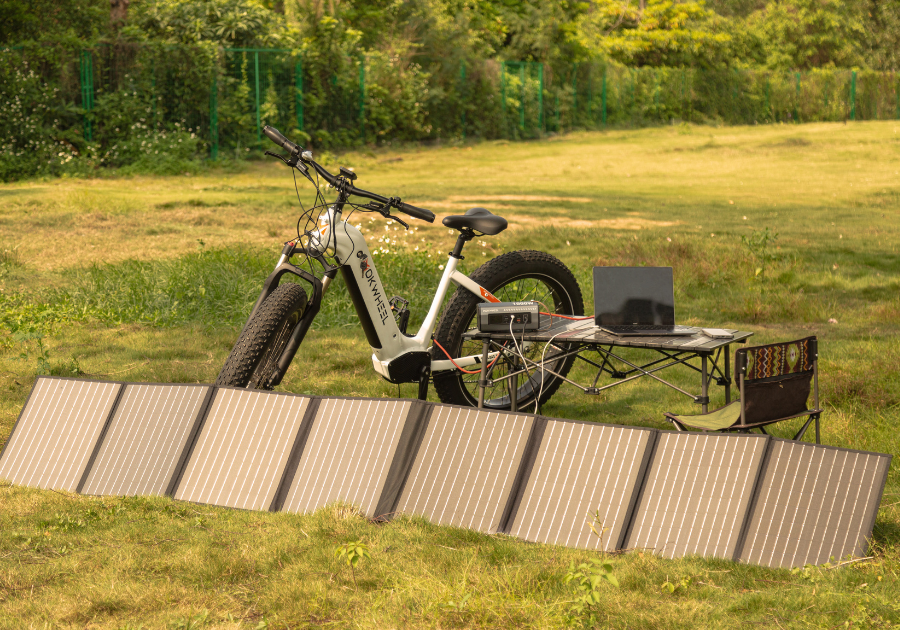

When receiving solar light, there is no need to store solar energy in the battery, and the output port is 5V/19.4v to directly charge Mokwheel Electric Bike Battery(Basalt、Basalt ST、Scoria、Obsidian、Obsidian ST), iPad, iPhone, Android and other devices.
Solar panels need to be connected to the inverter before charging the Mokwheel Electric Bike Battery, and it takes about 4-5 hours to charge the battery with solar panels in full sunlight.
It is a solar product that directly converts light energy into electricity with LED display.

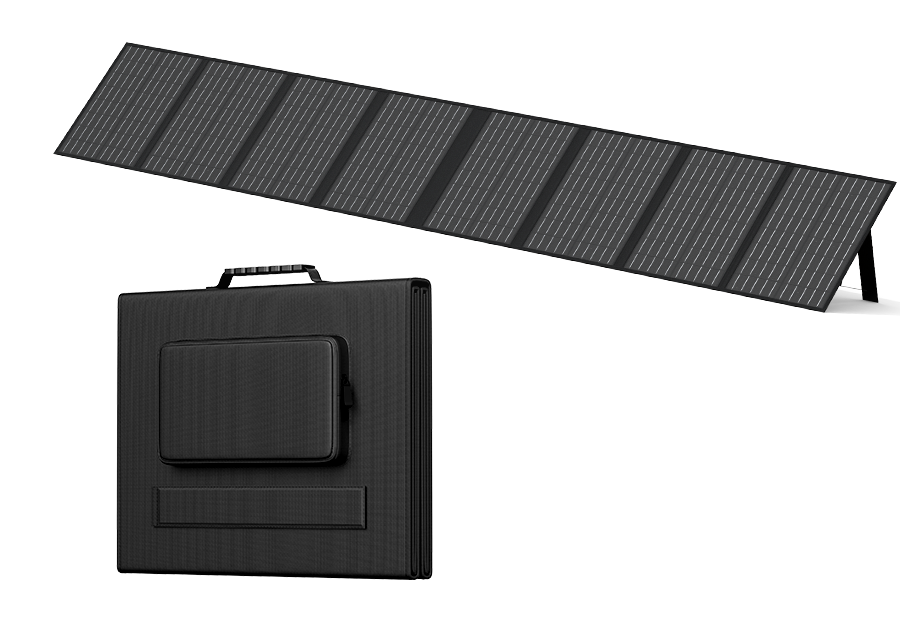

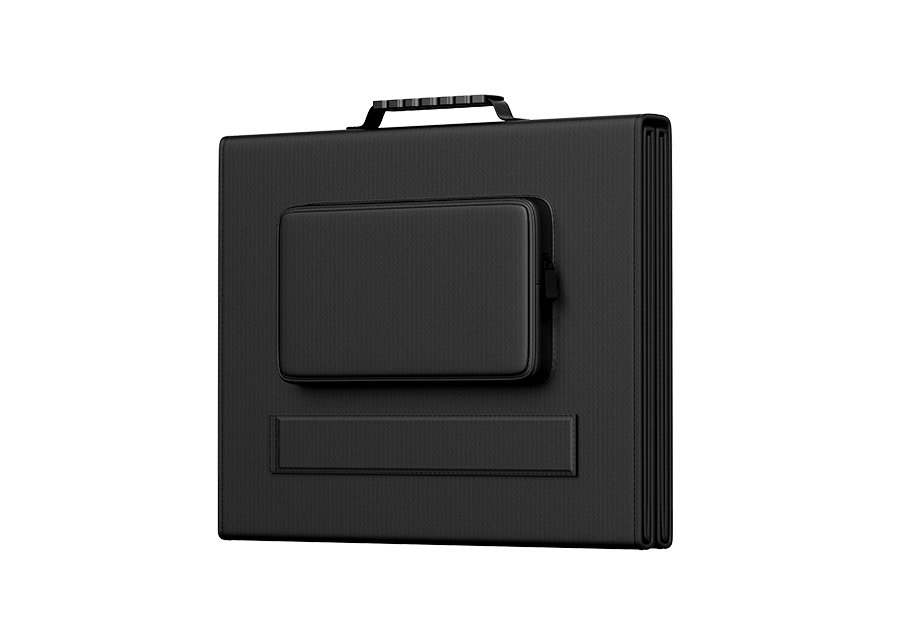

Benefit from free solar energy in a lightweight foldable format you can always carry with you no matter where you go.
Size
3m Double-ended 5521 cable, 5521 adapters 7909
SPECS
| Specification | 230W Model | 100W Model |
|---|---|---|
| Rated Power | 230W | 100W |
| Cell Efficiency | 22% | 22% |
| Power Voltage | 36V | 19.4V |
| Power Current | 6A | 5.4A |
| Open Circuit Voltage | 43V | 24.5V |
| Short Circuit Current | 6.9A | 2.92A |
| Charging Method | Solar Power | Solar Power |
| Parallel Capable | Yes | Yes |
| Product Weight | 9.26 lbs (4.2kg) | 8.82 lbs (4kg) |
| Dimensions - Folded | 17.9 × 14.6 × 2.36 inches | 18.7 × 16.8 × 1.7 inches |
| Dimensions - Expanded | 115.75 × 17.9 × 0.2 inches | 68.5 × 16.8 × 1.1 inches |
| Operating Temperature | 14 to 158°F | -4 to 140°F |
| Certification | CE, FCC, RoHS | CE, FCC, RoHS |
| Warranty | 12 months | 12 months |
| In the Box | 3m double-sided 5521 cable, 5521 adapter (7909, 35135, 5525) | 3m 7909 cable |
Considerations
1. Do not squeeze the solar panel forcefully. Otherwise, it will easily damage the solar panel.
2. Do not put the product into water or get it wet.
3.Try to make the solar panel and the solar
light in vertical irradiation , which can improve the absorption of solar light by the
solar panel when you use it.
4. Please keep the surface of the solar panel clean. Otherwise, it will easily affect the absorption of solar energy by the solar panel.
5. Try to ensure that the light on each solar panel is uniform.
6. Do not throw away discarded solar panels
